In modern automated production, an automatic screw-tightening station plays a vital role. It not only boosts production speed but also guarantees consistent quality and reliability. Below is a breakdown of the main building blocks of such a station, illustrated with Danikor solutions.

1. Screw Feeder – Orderly Supply

The screw feeder is the foundation of the whole system. It takes randomly oriented screws and lines them up, then delivers them to the tightening screwdriver via a blow tube. Three common feeder types are:

• Vibratory Bowl – general purpose

• Disc Feeder – ideal for micro screws

• Step Feeder – Danikor’s flagship for M2–M24 screws, capable of long-screw handling and low-noise operation.

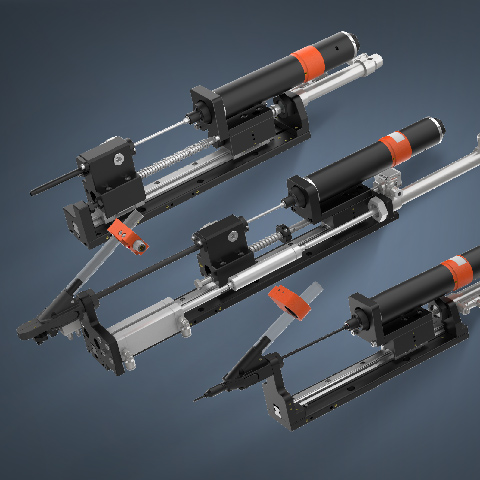

2. Tightening Module – Accurate Execution

The tightening module holds and guides the screw while a cylinder or servo motor drives the tool to apply torque. Danikor offers:

• Universal modules – compact, quick-change heads



• Offset / 90° modules – for tight spaces

• Floating modules – compensate for hole position errors up to 2.5 mm

3. Motion System – Precise Positioning

• 3-Axis Cartesian Platform – high-precision ball-screw axes (X-Y-Z) deliver repeatable placement within 0.1 mm.

• 6-Axis Robot – Danikor integrates directly with major robot brands, enabling complex paths for multi-angle or multi-location tightening.

<h3 clas

s="" style="font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", system-ui, -apple-system, "Segoe UI", Roboto, Ubuntu, Cantarell, "Noto Sans", sans-serif, Arial, "PingFang SC", "Source Han Sans SC", "Microsoft YaHei UI", "Microsoft YaHei", "Noto Sans CJK SC", sans-serif; scrollbar-color: transparent transparent; margin: 0px 0px 16px; padding: 0px; border: 0px; font-variant-numeric: inherit; font-variant-east-asian: inherit; font-variant-alternates: inherit; font-variant-position: inherit; font-variant-emoji: inherit; font-stretch: inherit; font-size: 16px; line-height: 26px; font-optical-sizing: inherit; font-size-adjust: inherit; font-kerning: inherit; font-feature-settings: inherit; font-variation-settings: inherit; vertical-align: baseline; letter-spacing: 0px; color: rgba(0, 0, 0, 0.9); text-wrap-mode: wrap; background-color: rgb(255, 255, 255);">    4. Tightening Tool – Smart Torque Control

Danikor’s TTC & TTD series smart screwdrivers provide:

• ±1.67 % torque accuracy (3σ)

• Real-time torque, angle, and speed logging

• Job (Pset) memory for hundreds of programs

• Data upload to MES for traceability
