Fixed Intelligent Screw Driver TTA

Torque Range：0.1-200Nm

Stable and durable performance, extended torque range, maximum torque of 200Nm, high-accuracy tightening, clamping torque control to ensure that each screw achieves the best tightening state. 7-inch large screen, programmable; real-time curve can be seen; historical data can be consulted. For the 3.5-inch screen, you can check the tightening results and switch the Pset.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

6σ accuracy over the Full torque range

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

Ensures accuracy and short time.

Ensure product quality and production efficiency.

Reduce setup time between different tightening requirement.

Intelligent

Record and monitor the data of full tightening process.

Upload in real time to computer and MES system.

It can store 2,000 groups of tightening results and can be expanded through SD card.

Higher curve sampling frequency and Higher data recording traceability.

Error-proofing

Abnormal monitoring of tightening process

Based on the angle monitoring of threshold torque, it can more timely and effectively find the unqualified tightening conditions such as floating lock, sliding tooth,wrong and missing, gasket missing etc.

Assembly process authority management

In the debugging interface, you need to enter the password to set the strategy and program.

Convenient

UI interaction is superior

UI interaction is superior It is convenient for the operator to set the strategy and data view.

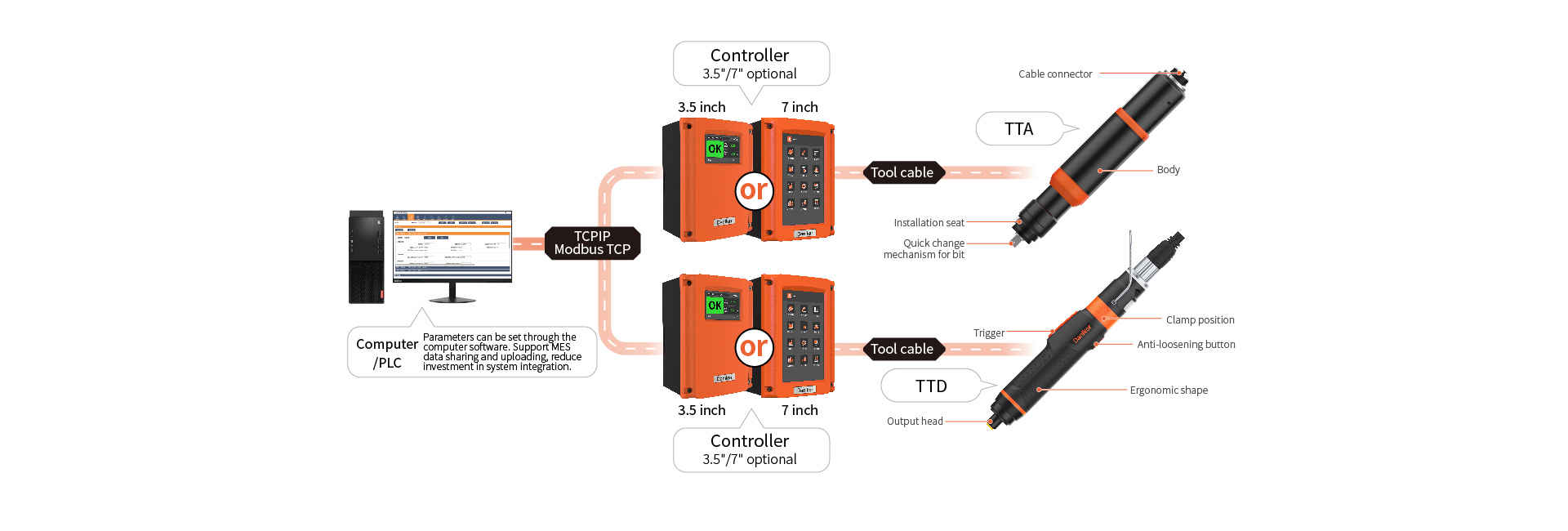

Product Structure

Product Parameters


	Model	Max torque Nm	Max Speed rpm	Weight kg	Grip diameter mm	Design Life	MTTF	Bit quick connector	Screw driver controller	Screwdriver cable
TTA	PTT-ASF-5000M-0-H10-000-B	0.1-0.5	3000	0.8	263*46	>10million	>1million	HEX1/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0014N-0-H10-000-B	0.2-1.4	3000	0.9	263*46	>10million	>1million	HEX1/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0045N-0-H10-000-B	0.7-4.5	1800	1.1	295*46	>10million	>1million	HEX1/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0070N-0-H10-000-B	1-7	1200	1.1	295*46	>10million	>1million	HEX1/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0120N-0-H10-000-B	4-12	545	1.5	309*46	>10million	>1million	HEX1/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0200N-0-S20-000-B	5-20	1870	2.7	353*65	>10million	>1million	S 3/8"	OPT-SCS-003-TA1-B-800W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0500N-0-S30-000-B	6-50	555	2.7	364*65	>10million	>1million	S1/2"	OPT-SCS-007-TA1-B-800W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0800N-0-S30-000-B	10-80	555	4	380*86	>10million	>1million	S1/2"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-1300N-0-S30-000-B	20-130	444	4.8	400*86	>10million	>1million	S1/2"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-2000N-0-S40-000-B	30-200	293	5	407*86	>10million	>1million	S 3/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0200N-0-S20-030-B	5-20	1870	-	448*56	>10million	>1million	S 3/8"	OPT-SCS-003- TA1-B-800W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0500N-0-S30-050-B	6-50	555	-	514*56	>10million	>1million	S 1/2"	OPT-SCS-007- TA1-B-800W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-0800N-0-S30-050-B	10-80	555	-	530*86	>10million	>1million	S 1/2"	OPT-SCS-003-TA1-B-1300W OPT-SCS-007-TA1-B-1300W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-1300N-0-S30-050-B	20-130	444	-	541*86	>10million	>1million	S 1/2"	OPT-SCS-003-TA1-B-1300W OPT-SCS-007-TA1-B-1300W	Optional 5m/10m/15m/20m Straight or Angle Cable
	PTT-ASF-2000N-0-S40-050-B	30-200	293	-	549*86	>10million	>1million	S 3/4"	OPT-SCS-003-TA1-B-1300W OPT-SCS-007-TA1-B-1300W	Optional 5m/10m/15m/20m Straight or Angle Cable

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
