Fixed CurrentIntelligent Screw Driver TCA

Torque Range：0.1-200Nm

Danikor’s electric screwdriver with torque control has both torque and angle control. The built-in transducer measures torque and angle with high accuracy, achieving high-precision tightening and ensuring the consistency of tightening torque. It provides real-time feedback of relevant data and offers data traceability, making it suitable for both manual and automated industrial assembly lines. This helps provide users with higher quality products.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

Standard deviation accuracy over the full torque range.

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

Flexibility to respond to applications with different requirements.

Guarantee tightening quality Optional higher order strategy:clamping torque control.

Reduce setup time between different tightening requirements.

Automatically switch between different Psets

Intelligent

Record and monitor the data of full tightening process.

Real-time data upload

Real-time docking with MES system.

Data storage

You can hold more quantities and filter the number of results that are analyzed for a given program or time period.

Data traceability

Multiple curves are superimposed to facilitate depth analysis.

Errorproofing

Monitoring of abnormal tightening process

All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.

Assembly process authority management

In the debugging interface, you need to enter the password to set the strategy and program.

Job planning and superposition protection

If Job batch is inconsistent, it is required to enter password for intervention.

Convenient

Automatically learn

Automatically recommend the reference parameter range, and quickly build the tightening strategy.

Superior human-computer interaction

Visual OLED display screen, 3-color light (such as NG red), buzzer and front light is convenient for operators to use.

Multiple startup forms

It can be handheld or fixed with machine, and handheld can be pressed down,triggered or remotely activated.

Rapid expansion port

Threaded external connection for quick matching vacuum suction nozzle and a fixed structure.

Multiple communication forms

RS485 RTU, TCP/IP open Protocol, extended digital I/O interface.

Multiple functions optional

Optional teaching pendant or communication module, real-time data viewing and parameter setting.

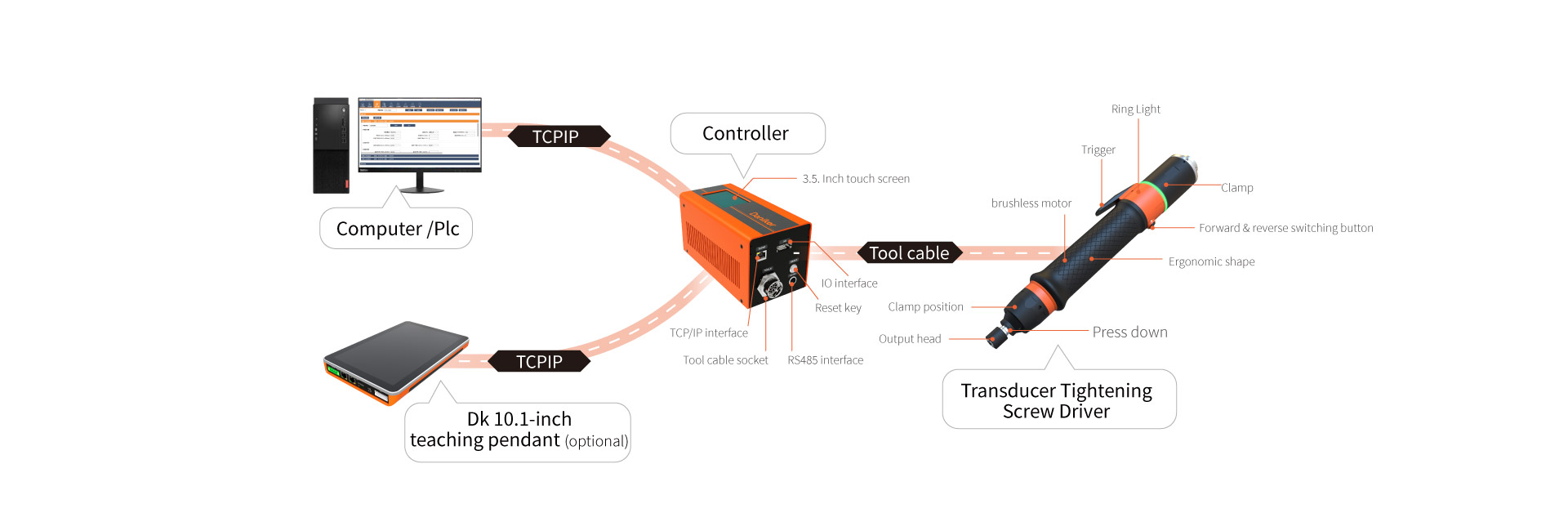

Product Structure

Product Parameters

Model	Max torque/Nm	Max speed/rpm	Grip diameter /mm	Design life	MTTF	Bit quick connector	Starting mode	Screw driver controller	Screw driver cable
PTT-DSH-7000M-34-H1D-000-G3	0.14-0.7	3000	34	＞10 million	＞1 million	Hex 1/4"	Pushed/ Pressed/ Remote	OPT-STC-C1- DC1-V3-500W / OPT-STC-C1- DC2-V3-500W	OPT-SCT-00- V3-DC-05
PTT-DSH-0012N-34-H1D-000-G3	0.24-1.2	1500	34			Hex 1/4"
PTT-DSH-0020N-37-H1D-000-G3	0.4-2	3000	37			Hex 1/4"
PTT-DSH-0040N-37-H1D-000-G3	0.8-4	1500	37			Hex 1/4"
PTT-DSH-0080N-37-H1D-000-G3	1.6-8	960	37			Hex 1/4"
PTT-DSH-0120N-37-H1D-000-G3	2.4-12	700	37			Hex 1/4"
PTT-DSH-0200N-37-S2D-000-G3	4-20	300	37			S 3/8

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
