TBD Transducer Intelligent Screwdriver

Torque Range：0.4-80Nm

Wireless restraint, flexible application to a variety of tightening stations, multiple data protection system, superimposed ultra-long battery life, reduce downtime, to achieve high quality and high efficiency tightening.

Request a Quote

Product Advantages

Data security, full control

Dual power supply guarantee

Built-in battery backup ensures zero data loss when power is off or replaced

Flexibility in your choice of data protection mechanism

After the data is disconnected, the number of remaining tightening screws can be prompted, or the direct shutdown protection can be selected to ensure the integrity of data acquisition

Durable and stable maintenance hassle-free

Long battery life

At 80% torque range, it can complete 2000 bolt tightening cycles, or 8 hours of continuous operation

power management

It is equipped with two batteries as standard, 20min fast recharging, and battery life diagnosis to ensure the efficient operation of the production line

Structural protection

t meets the industry’s 1.5m drop test standard, with stable operation and reduced maintenance costs

Intelligent interaction streamlined investment

QR code scanning integration

Equipped with code scanning function, one-click binding of workpiece/station, simplifying equipment control

Autonomous control

Built-in controller, with free program software, support independent use, direct connection to the MES system

Man-machine interaction

Equipped with 1.5-inch display, real-time view of tightening status, support Pset switching

Communication convenient efficient connectivity

Industrial connectivity

It supports the industry's common OP standard protocol to achieve rapid changeover.

Dual-mode communication

Support Wifi (2.4GHz) connection, effective coverage radius of 20m, support Bluetooth fast connection, low power consumption, strong anti-interference ability

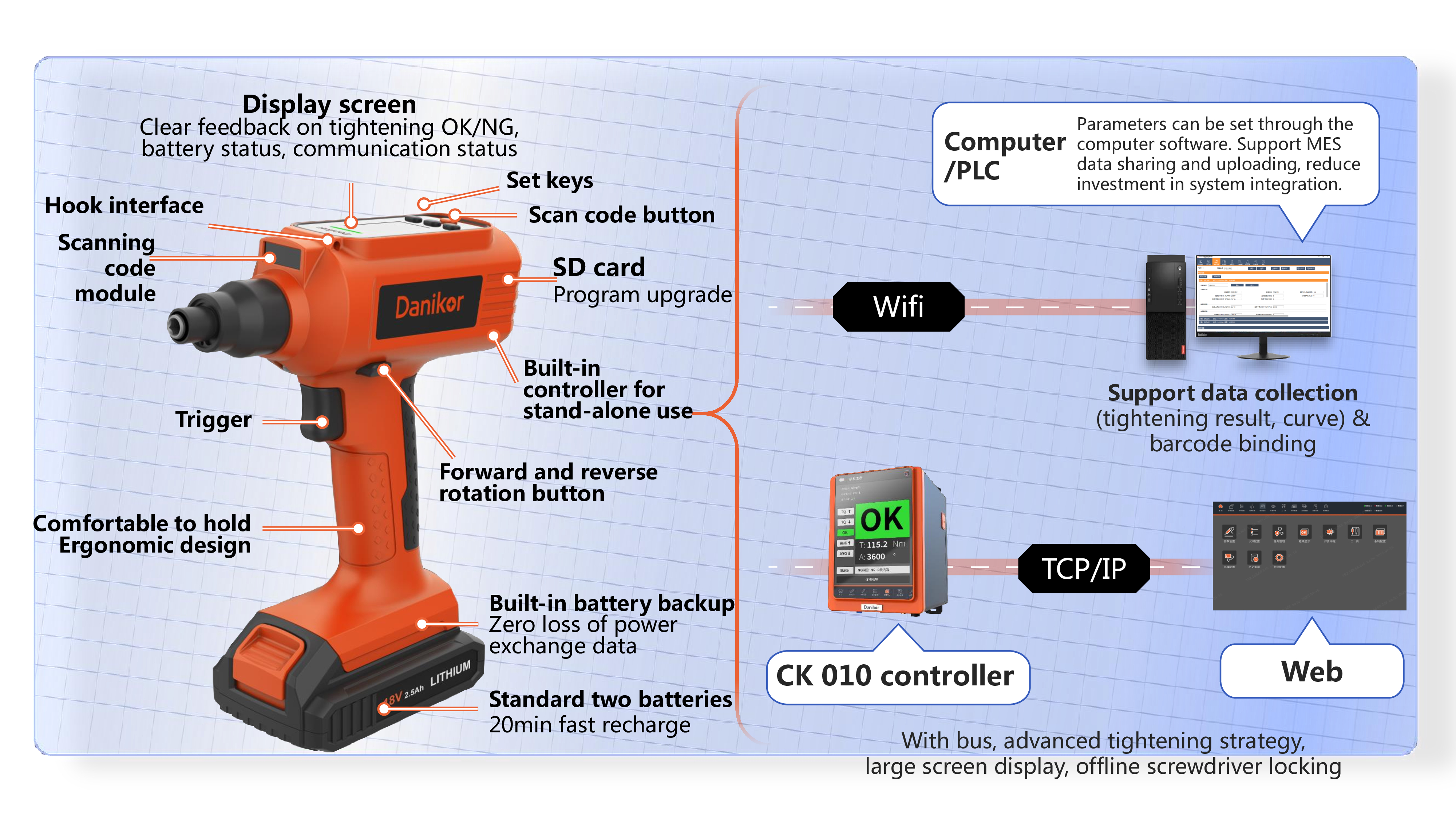

Product structure — Pistol Type

Product Parameters


	Model	Max torque Nm	Max Speed rpm	Grip diameter mm	Design Life	MTTF	Bit quick connector	Screw driver controller
Pistol	PTB-DPH-0020N-42-H1P-000-B	0.4-2	3000	42	>10million	>1million	HEX1/4"	Internal/external
	PTB-DPH-0040N-42-H1P-000-B	0.8-4	2070	42	>10million	>1million	HEX1/4"	Internal/external
	PTB-DPH-0080N-42-H1P-000-B	1.6-8	960	42	>10million	>1million	HEX1/4"	Internal/external
	PTB-DPH-0120N-42-H1P-000-B	2.4-12	690	42	>10million	>1million	HEX1/4"	Internal/external
	PTB-DPH-0200N-42-S2P-000-B	4-20	380	42	>10million	>1million	HEX3/8"	Internal/external


	Model	Max torque Nm	Max Speed rpm	Grip diameter mm	Design Life	MTTF	Bit quick connector	Screw driver controller
Angle	PTB-DAH-0060N-45-S2P-000-B	1.2-6	3000	45	>10million	>1million	HEX3/8"	Internal/external
	PTB-DAH-0100N-45-S2P-000-B	2-10	1900	45	>10million	>1million	HEX3/8"	Internal/external
	PTB-DAH-0180N-45-S2P-000-B	3.6-18	1050	45	>10million	>1million	HEX3/8"	Internal/external
	PTB-DAH-0300N-45-S2P-000-B	6-30	720	45	>10million	>1million	HEX3/8"	Internal/external
	PTB-DAH-0450N-45-S2P-000-B	9-45	450	45	>10million	>1million	HEX3/8"	Internal/external
	PTB-DAH-0800N-45-S3P-000-B	16-80	230	45	>10million	>1million	HEX1/2"	Internal/external

Releated Cases

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
